40ppm 250ml Lipgloss Tube Filling Sealing Machine Servo Driven

Name: 40ppm 250ml Lipgloss Tube Filling Sealing Machine Servo Driven
Brand: GIENI
Price: 1 USD

China 40ppm 250ml Lipgloss Tube Filling Sealing Machine Servo Driven wholesale

Brand Name : GIENI

Model Number : GNF

Certification : CE

Place of Origin : Shanghai

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1

Delivery Time : 45

Packaging Details : plywood case

Type : Tube Filling and Sealing Machine

Application : lipgloss, foundation cream, hand cream, concealer, eyecream,,etc

Driven Type : Servo Driven

Certificate : CE

Outer Dimension : 1890*1083*2172mm(LXWXH)

Voltage : AC380V,3P,50/60Hz

Capacity : 40 ppm

Tube material : plastic laminated

Contact Now

Ecnomic Model Automatic Lipgloss Cosmetic Tube Filling Sealing Machine

Application:

The machine can automatically do the job: tube load,eyemark detect,filling,tube heat,tube sealing,end cut,date coding andfinished product conveyout.

Tube loading adopts pneumatic way, reliable and precise.

Rotary type tube center control and positioning by choosing sensor detect.

Material contacts adopt SUS316L, clean/safe and meet GMP standard.

Safety-door device, stop work when open the door. No tube no filling, overload protection.

Technical Parameter:

Filling Range: 5-250ml

Filling Precision:≤±1%

Production capacity:1800-2400pcs/hour

Tube Dia:∮10-50mm

Tube Length:60-210mm

Power:5KW

Dimension:1900×850×1900mm

Packing Size: 2000*1220*1915mm

Weight:850kg

Process:

Main Configuration:

Item	Name	Brand
1	PLC	Delta
2	Touch Screen	Weinveiw
3	Converter	Delta
4	Step Motor	SIhai
5	Eyemark detect sensor	Panasonic
6	Air Switch	CHNT
7	Code	Omron
8	Pneumatic Elements	SMC

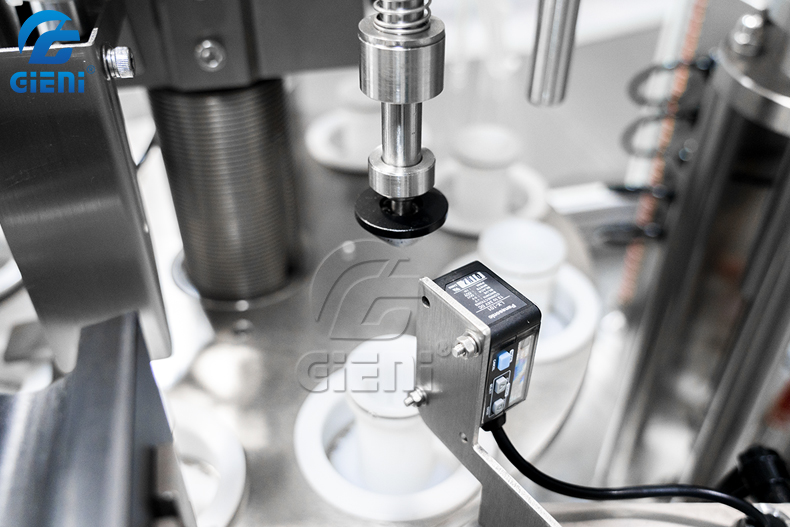

Eye Mark Detect

40ppm 250ml Lipgloss Tube Filling Sealing Machine Servo Driven

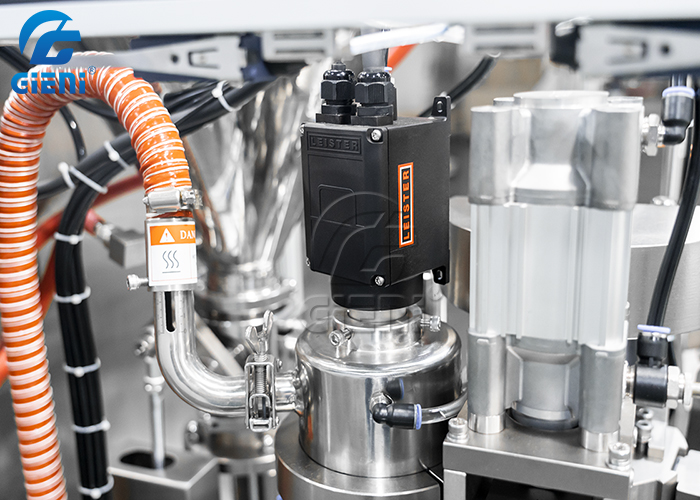

Hot Air Blowing and Sealing Station

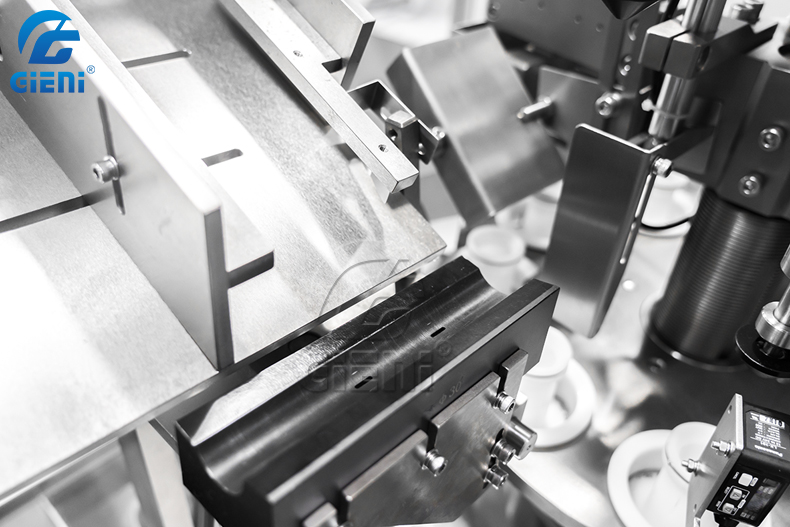

Tube Loading Station

40ppm 250ml Lipgloss Tube Filling Sealing Machine Servo Driven

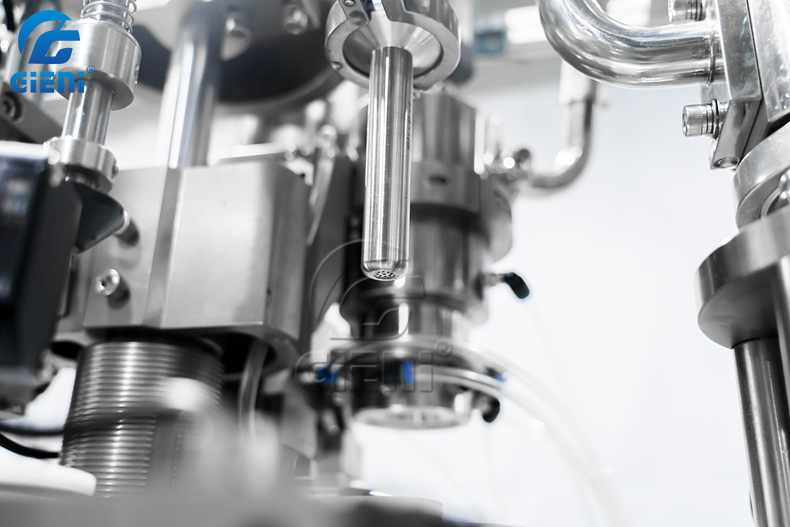

Filling Station, tube lift-up

40ppm 250ml Lipgloss Tube Filling Sealing Machine Servo Driven
